Siemens 808D Controller 3 Axis CNC Lathe CK6140

  • 1 - 1 Sets
    $9,300.00
  • >=2 Sets
    $9,100.00
Spindle bore:
60mm
Max. Swing Diameter (mm):
400
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Shandong, China
Brand Name:
YZ CNC
Model Number:
CK6140
Condition:
New
Dimension(L*W*H):
2320*1400*1700mm
Certification:
CE SGS ISO
Voltage:
Customer's Requirement
Year:
2019
Max. Spindle Speed (r.p.m):
2500 r.p.m
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
0.008
Applicable Industries:
Manufacturing Plant, Machining Workshop
Key Selling Points:
High-accuracy
CNC Control System:
GSK
Weight (KG):
1800
Max. Swing Diameter (mm):
400
Max. Length of Workpiece (mm):
1500
Number of Axes:
4
Spindle Motor Power(kW):
5.5
No. of Spindles:
Single
Machining Capacity:
Heavy Duty
Name:
Siemens 808D Controller 3 Axis CNC Lathe CK6140
Machine Type:
Horizontal CNC Lathe
Function:
Metal Turning
Spindle bore:
60mm
Spindle speed:
200-2500rpm
Control system:
SIEMENS GSK FANUC (optional)
Precision:
High Precision
Turret Type:
4/6/8 Station Electric Turret
Max.swing over bed:
400mm
Color:
Customized
CNC or Not:
CNC
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exporting standard package, water proof, anti-rust and fumigation-free.
Port
Qingdao/Shanghai/Ningbo/Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Video Description
Product Introduction

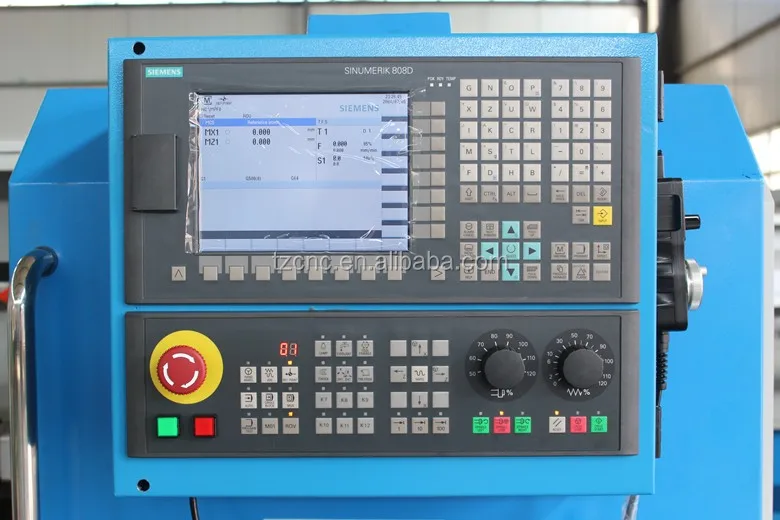

Siemens 808D Controller 3 Axis CNC Lathe CK6140

Machine Features:

1-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

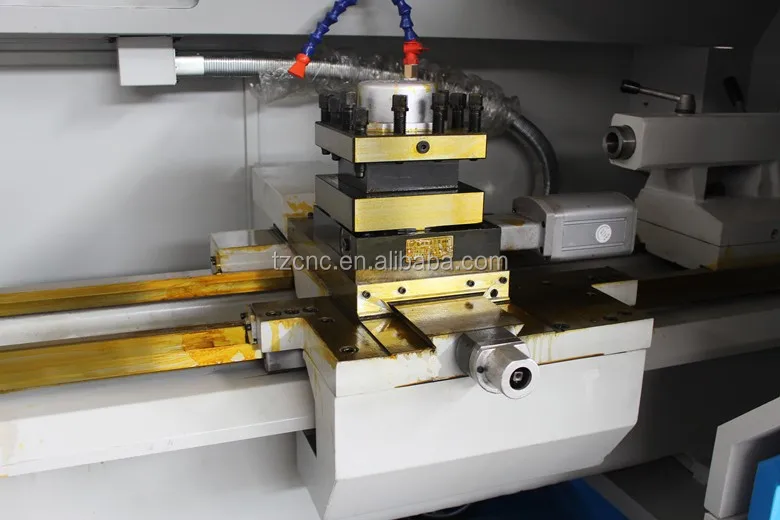

2-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post     is located on precision contrite gears with a high repeated positioning accuracy.

3-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.

4-The spindle system is high in rigidity and accuracy.

5-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.

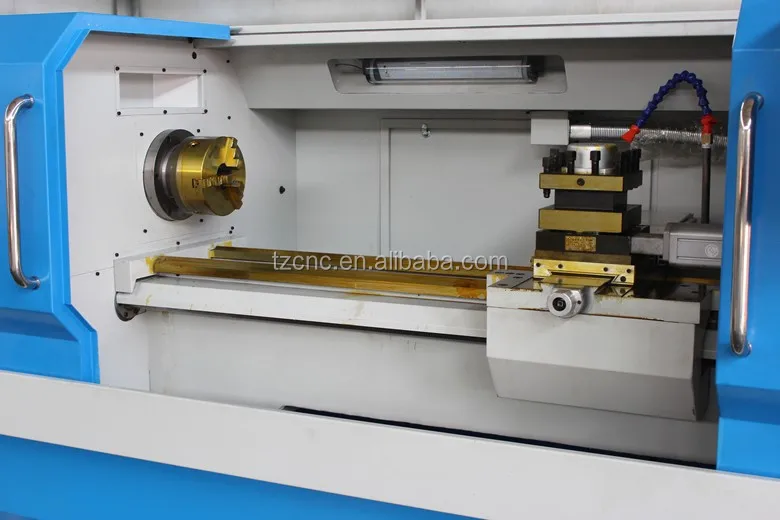

Product Details Show

Contact us to get more details.

Product Parameters
Item/Model
CK6132
CK6432
CK6136
CK6140
CK6150
Max. swing dia. over bed
360mm
360mm
360mm
400mm
500mm
Max. swing dia. over cross slide
150mm
150mm
190mm
225mm
300mm
Max. workpiece length
450mm
450/700mm
750/1000mm
750/1000mm
750/1000/1500mm
Spindle bore
40mm
60mm
60mm
60mm
82mm
Spindle speed
150-2500RPM
150-2500RPM
200~2500RPM
200~2500RPM
150-2000RPM
Spindle bore taper
MT5
MT6
MT6
MT6
1:20/Φ90
Tool post
4-station
4-station
4-station
4-station
4-station
Tool bar section
20X20 mm
20X20 mm
20X20mm
25X25mm
25X25mm
Main motor power
4kw
4kw
5.5kw
5.5kw
7.5kw
X/Z axis torque
4N.M/4N.M
4N.M/4N.M
4N.M/6N.M
5/7.5N.M
6/10N.M
X/Z axis travel stroke
310/450mm
X:260 Z:450/700mm
X:260 Z:760/1020mm
X:260 Z:760/1020mm
X:360 Z:750/1000/1500mm
X/Z axis fast feeding speed
6/8 M/MIN
6/8 M/MIN
6/8 m/min
6/8 m/min
8/10 M/MIN
Tailstock sleeve travel
100mm
100mm
120mm
120mm
150mm
Tailstock taper
MT3
MT4
MT4
MT4
MT5
Dimension
1820×1100 ×1550mm
1660/1940×1400×1700mm
2120/2370×1400×1700mm
2320/2570×1400×1700mm
2410/2660/3160*1560*1730mm
Net weight
1200kg
1250/1450kg
1650/1750kg
1800/1950kg
2800/3200/3500kg

Standard Configuration :

1- System:GSK928TD-L, servo motor and drive.

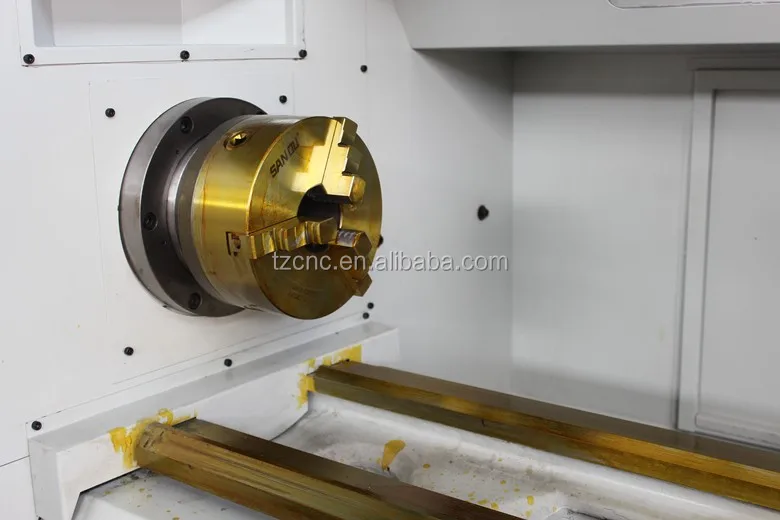

2- Manual 3-jaw chuck.

3- 4-station electric tool post.

4- Manual tailstock

5- Cooling system.

6- Lighten system.

7- Automatic lubrication system.

Optional Configuration:

1- CNC system: Siemens, Fanuc, KND.

2- Hydraulic chuck/Pneumatic chuck.

3- Hydraulic tailstock/Pneumatic tailstock.

4- Horizontal 6-station turret/8-station turret.

5- Auto bar feeder

6- Chip conveyor
